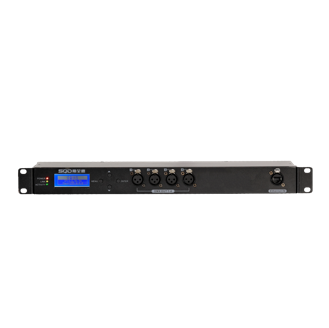

ARTNET2048 Converter

Easy to use MAC-based search interface that can be used to set IP addresses, control parameters Number of other built-in software, hardware, dual watchdog, can ensure long-term stable operation Ethernet interface, the core of a reliable system for security and long-term operation

System WINDOWS DLL application support use the remote controland management of DMX512 signal output(1990  Edition) with two-way function, Net to the DMX512 transmission; alsoDMX512 to Net transfer.

LCD displays  the status of the individual DMX port

LED Indicates the status of a network port

Standard DMX512, RDM, ArtNet, SCAN protocols are supported

POE power supply function(optional)

Chinese and English Display menu

IP address is manually 、Page setup

1 RJ45 port, 4 DMX input/output ports, each DMX512 port has a 2500V optoelectronic isolation interface, DMX priority setting (DMX port priority can be set)

Working ambient temperature:0℃-40℃

 IP Rating:IP20
